CPT Execute Failback Plan
Select an FBP from the task list on the Home screen then click the Execute Plan button to review, save and execute it.

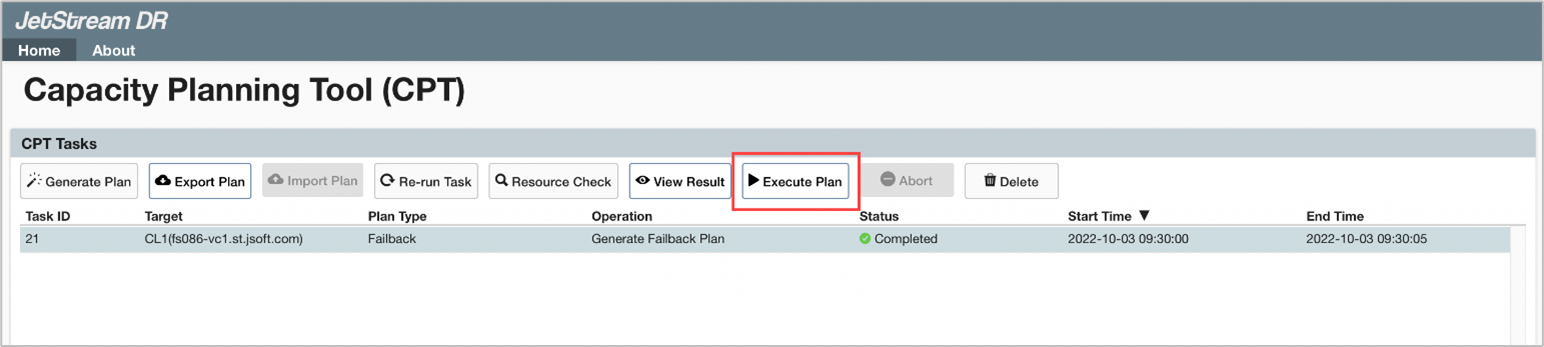

Figure 66: Execute a failback plan.
Plan details are retrieved from the server and automatically populate fields for review and editing.
- Edit FBP execution parameters by clicking the Edit links.
- Cluster Name
- Maximum Delay
- Domain Name Prefix
- vCenter Credentials
- Management Server
- DRVAs
- Storage Sites
- Domains
- Parallel Standard Domain Failbacks
- Click the Save Plan button to save the edited FBP for future reference.
- Click the Execute button to execute the FBP.

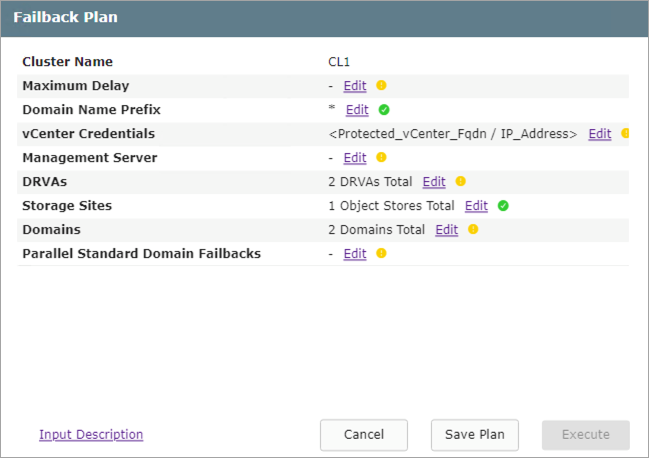

Figure 67: Failback plan execution parameters.
Note: Click the Input Description link to view help text about the input fields of the screen.
- The Failback task will be added to the CPT task list.

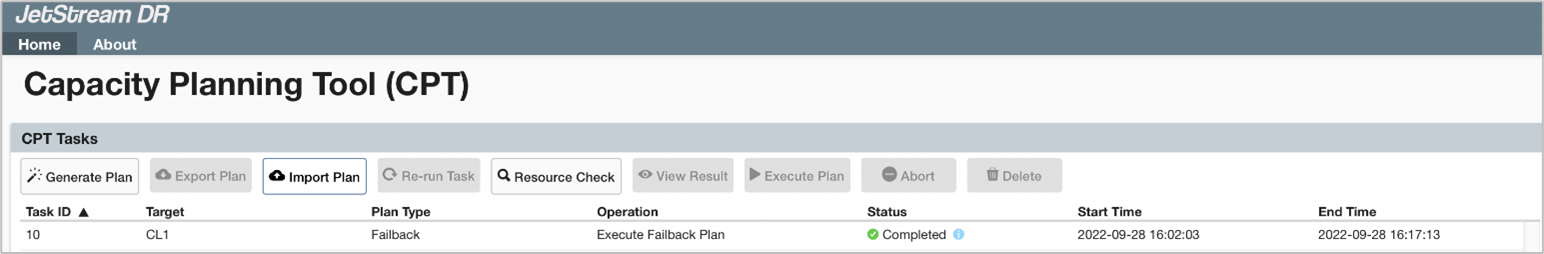

Figure 68: Failback plan execution started.
- Click the blue info icon under the Status column (for any executed task) to open a dialog window displaying task step details and status.

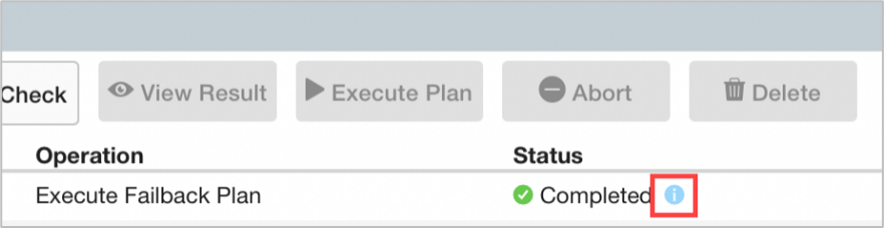

Figure 69: Click the blue info icon to view status details.

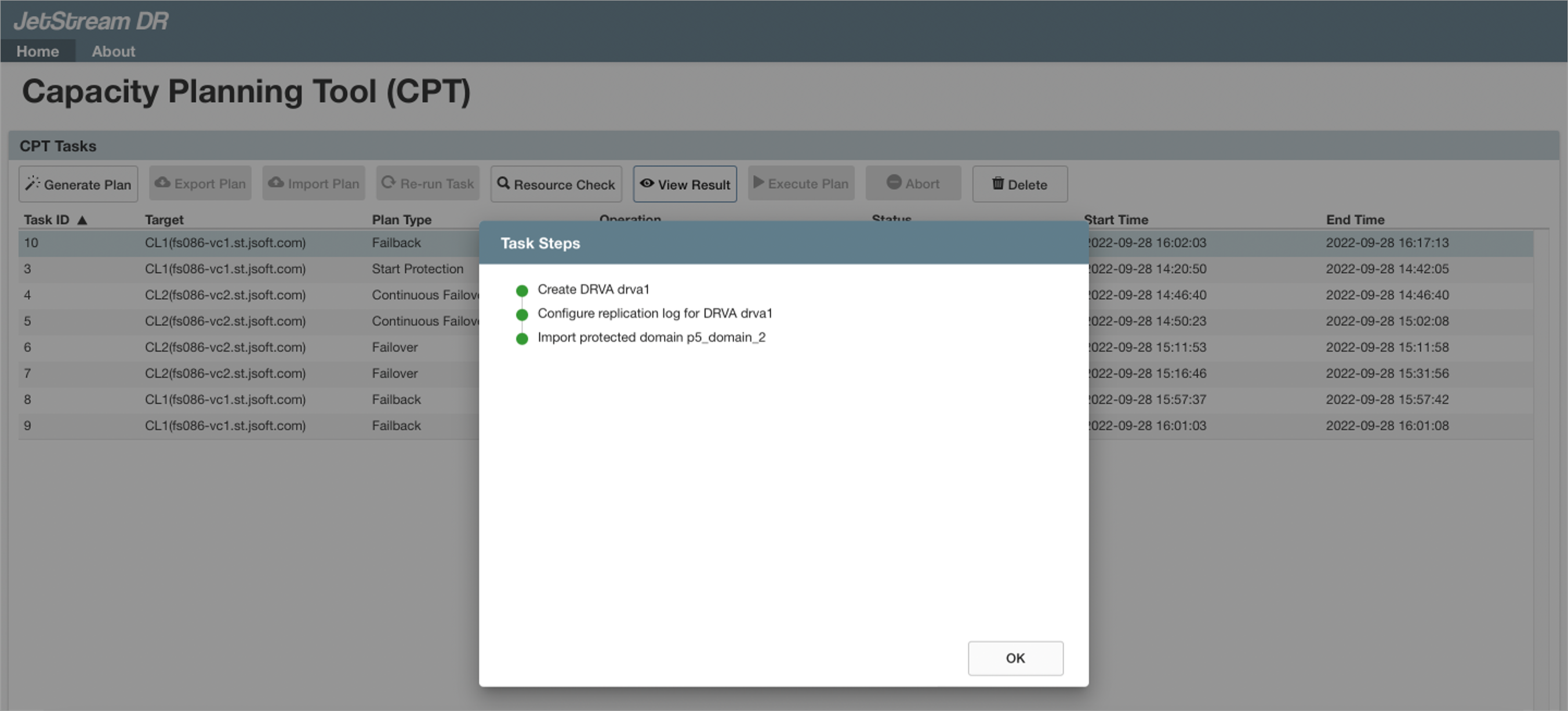

Figure 70: Execution task details.
