Certificates can be added and managed using the JetStream DR Management Server Appliance (MSA) user interface. Multiple certificates can be managed during the same transaction.

Add a Certificate

Do the following to add a certificate:

    1. Navigate to the MSA dialogue window and select the Certificate Management “Click Here” option:

Figure 335: Click the Certificate Management link.

    1. Specify a certificate file to add:

Figure 336: Select a certificate to add.

    1. Upload the certificate.
      • The certificate will be added to the transaction list and its state will be changed to "READY_TO_ADD."
      • Additional certificate(s) can be added by clicking the Add button.

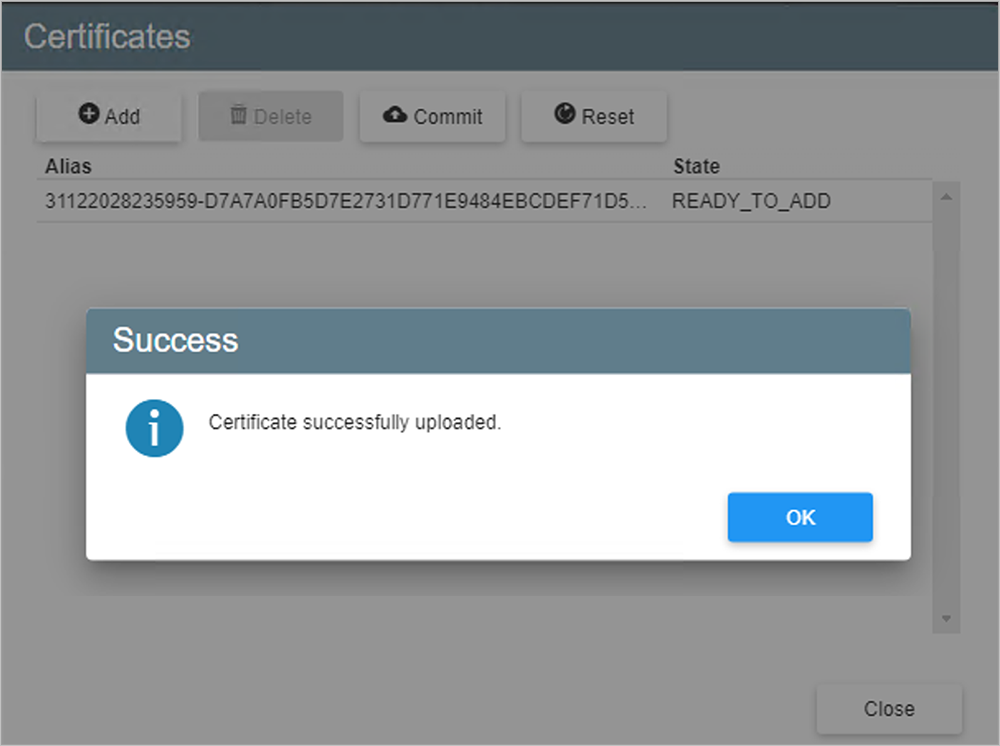

Figure 337: Certificate uploaded.

    1. Click the Commit button to finalize all transactions and end the certificate management session.
      • Trusted communication from the MSA can now begin.

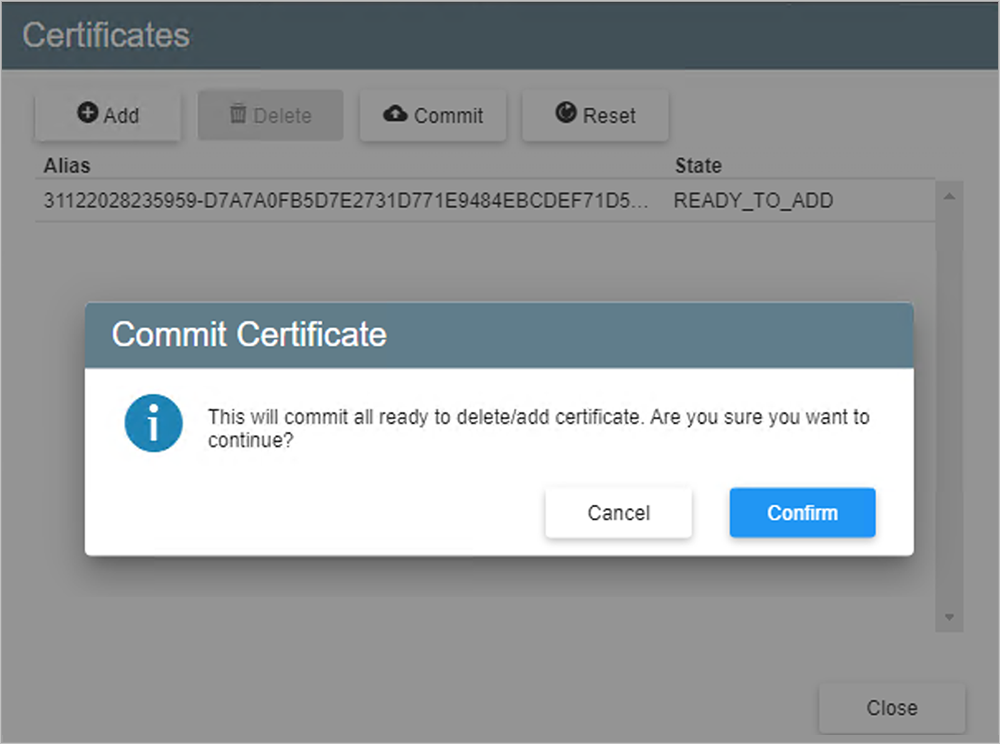

Figure 338: Commit the certificate.

Remove a Certificate

Do the following to remove a certificate:

    1. Select a certificate from the Certificates window then click the Delete button.
    2. Follow the steps to confirm and then commit the deletion.

Figure 339: Delete the selected certificate.

Figure 340: Confirm and commit the deletion.

Reset Changes

The Reset option resets all staged changes of the session:

    • "READY_TO_ADD" entries will be removed.
    • "READY_TO_DELETE" entries will be reverted to "IN_KEYSTORE."

Figure 341: Reset certificates transactions.
