Register the vCenter Server with the MSA by performing the following actions:

    1. Identify and copy the FQDN of the MSA.

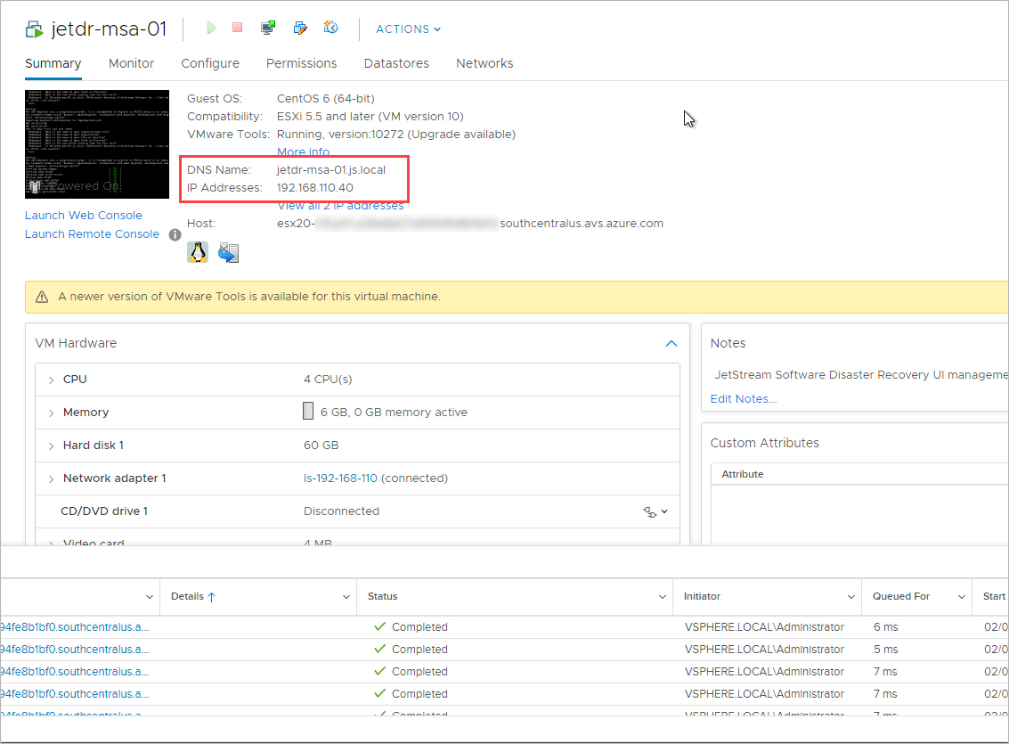

Figure 23: Copy the FQDN of the MSA.

    1. Access the JetStream DR MSA using a web browser.
      • Log in as root user with the password that was specified during its deployment.

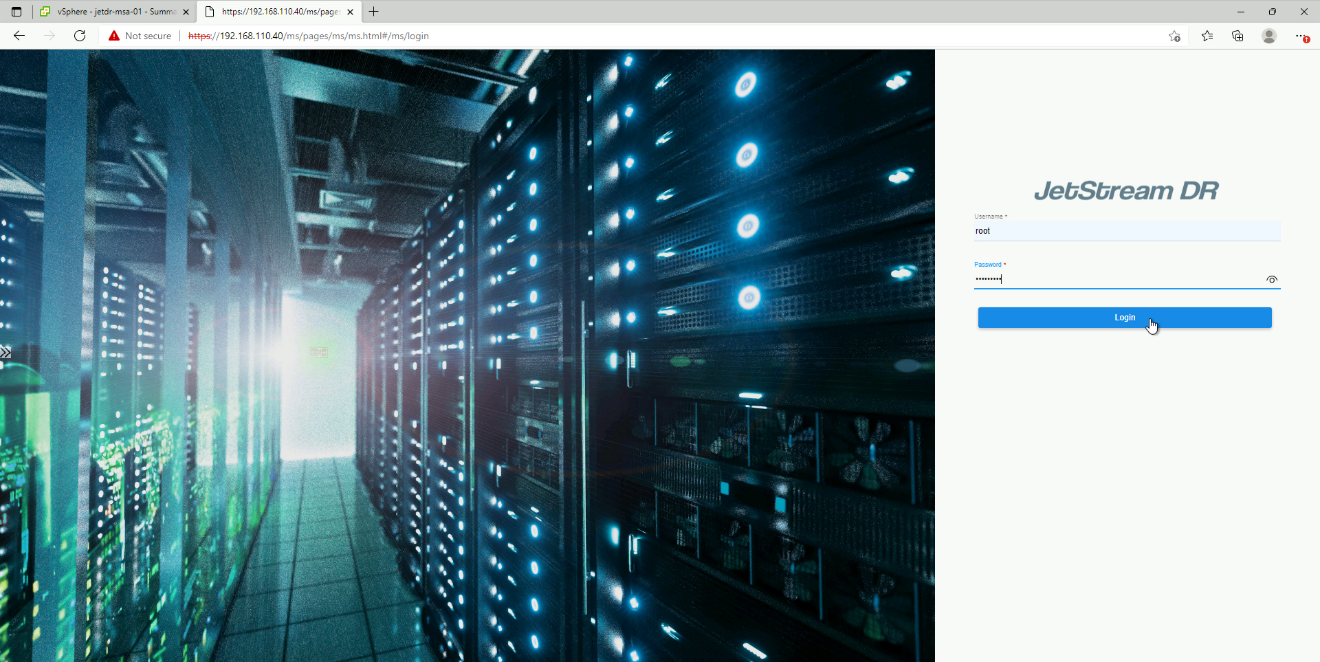

Figure 24: Log in as root user.

    1. Provide the requested details about the vCenter Server FQDN and Admin user credentials.
      • Click the Register button.

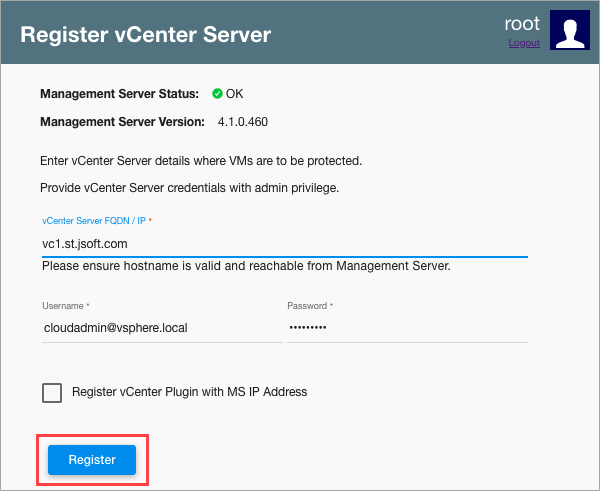

Figure 25: Register the MSA with vCenter Server.

      • A confirmation screen will indicate JetStream DR has been successfully registered.

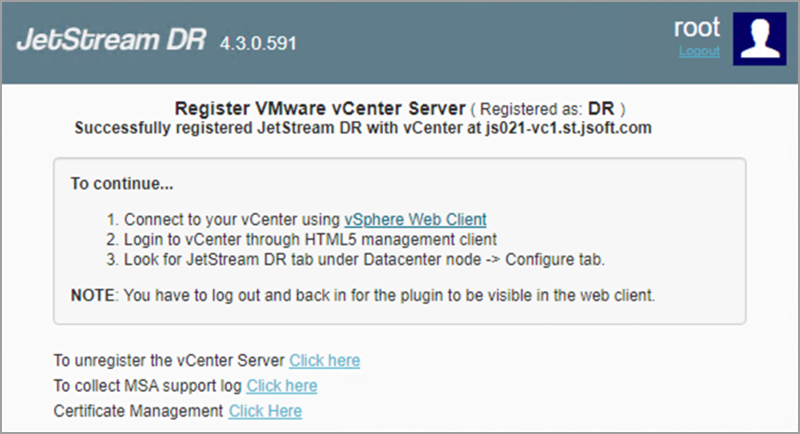

Figure 26: The MSA is registered.

    1. Refresh the plug-in in the vSphere client.
      • Log back in to access the JetStream DR plug-in.

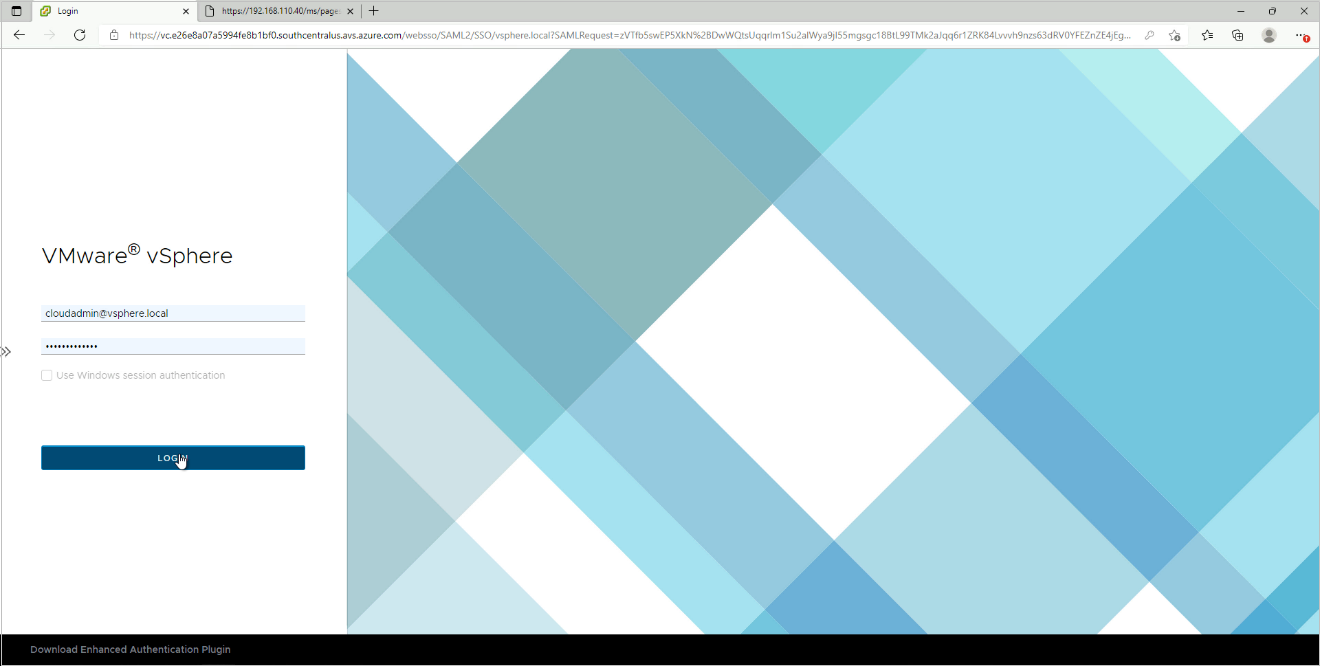

Figure 27: Log into vSphere.

Important: To properly access the JetStream DR plug-in after registering it, you must refresh the vSphere Client and then log back in again. Otherwise, the JetStream DR plug-in may not display correctly. This action will not be necessary for subsequent logins.

    1. Navigate to the datacenter where the MSA was installed.
      • Click the Configure tab.
      • The JetStream DR user interface will now appear.

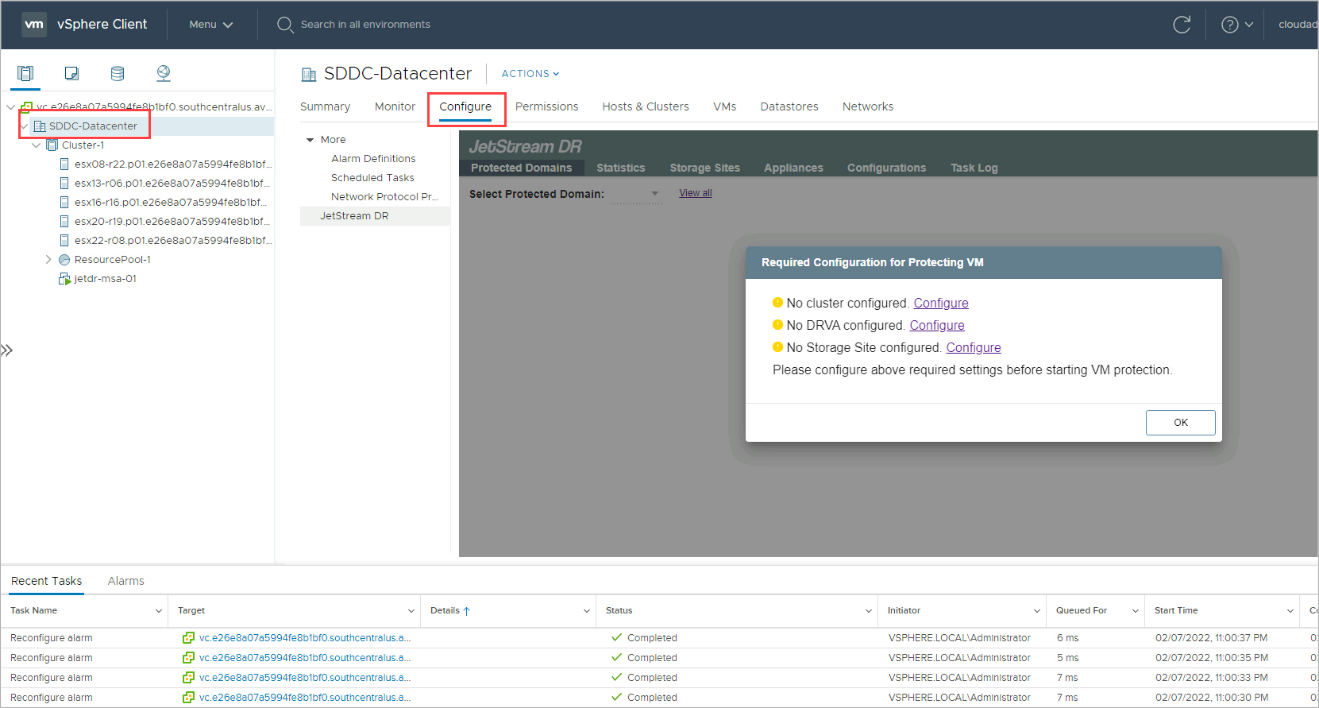

Figure 28: Configure JetStream DR software.
