Cluster upgrade for JetStream DR:

    1. Check the Configurations screen to see if the IOFilter of the cluster also requires upgrading.
      • Navigate to: (Datacenter) > Configure > JetStream DR > Configurations > Configured Clusters.
      • If a new software version is available, select it then click the Upgrade button.
      • Do this for all configured clusters.

Figure 374: A cluster version upgrade is available.

Figure 375: Confirm the cluster upgrade.

Important:
1) All powered-on VMs in the cluster must be able to freely migrate between the hosts of the cluster (vMotion).
2) Each host of the cluster must be able to go into maintenance mode for the IOFilter upgrade to be performed.

    1. After upgrading, verify the status of the upgraded cluster is OK.

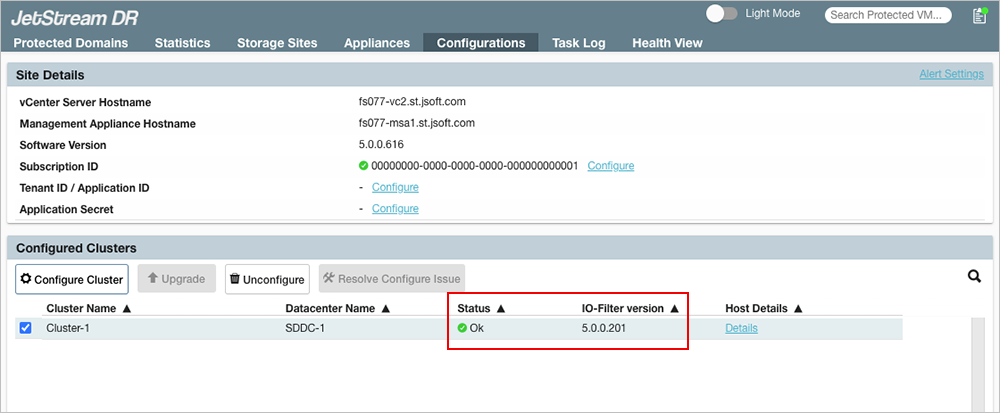

Figure 376: The cluster has been upgraded.
