This is an overview of the AROVA managed protection process. Under normal circumstances, the protection status transitions through three states:



Figure 50: Protection status workflow.

Initializing

    • During the Initializing phase AROVA configures asynchronous replication for VM disks by creating a Consistency Group, adding  primary disks to it and creating associated secondary disks.

Figure 51: VM protection is initializing.

Initial Sync

    • After Initializing is complete, the following state is Initial Sync.
      • During Initial Sync, pre-existing data and with newly generated data are replicated to the secondary disks.
      • While in this state, VMs are not recoverable because the secondary disks are not yet consistent.

Figure 52: Initial Sync started for a Recovery Group.

Figure 53: Initial Sync status of the VMs in the Recovery Group.

Figure 54: RPO is not available for Recovery Group VMs during Initial Sync.

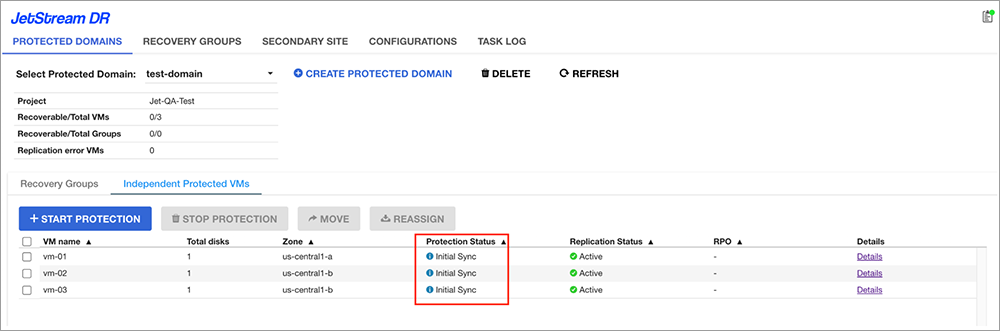

Figure 55: Protection status of independent protected VMs.

Recoverable

    • After Initial Sync, the VMs become Recoverable.
      • Recoverable protection status is indicated for Recovery Groups, the VMs contained within them, and independent VMs.
        • Current RPO values are calculated and displayed.
      • Protected VMs can now be recovered.

Figure 56: Recoverable Recovery Group.

Figure 57: Recoverable Independent VM.
