Connect replication log storage to the DR virtual appliance.

    • Step 4: DR Settings
      • Select a DRVA to use for CFO from the menu.
      • Select replication log storage for the DRVA from the menu.
      • Specify sizes for the replication log and metadata.
        • The log sizes should be based upon recovery requirements.
        • The Capacity Planning Tool (CPT) can be used to determine optimal values.
        • The default size of the logs is 64 GB.

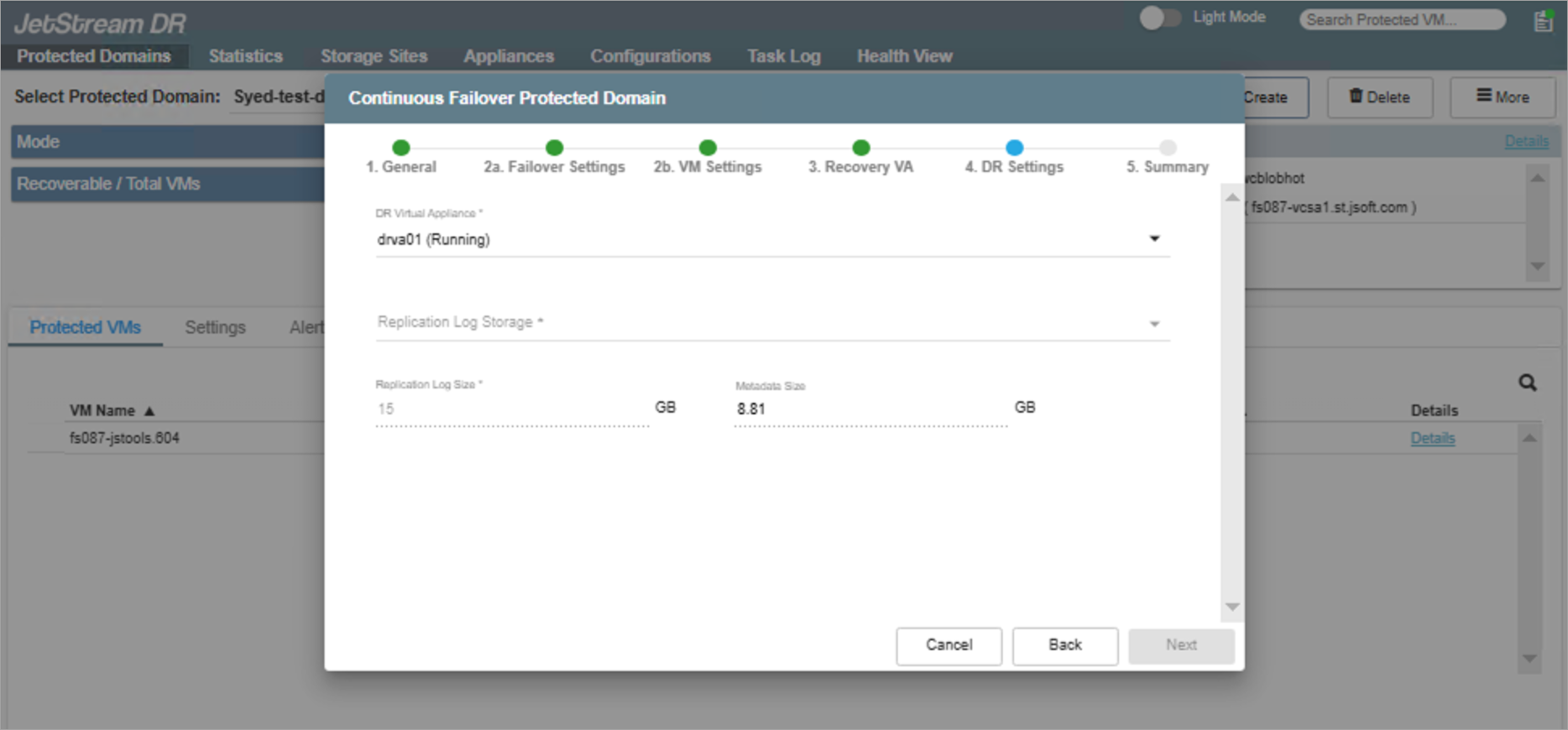

Figure 33: Assign a DRVA and replication log storage.


Click the Next button to proceed to the next step.
