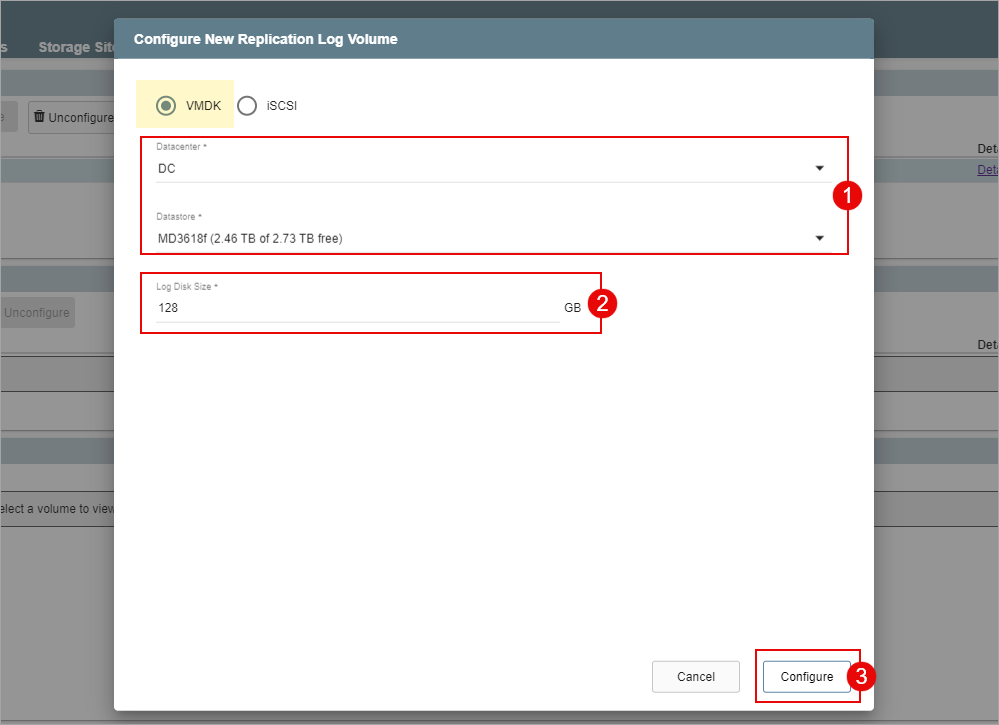

Configure a VMDK replication log to manage the data being protected.

  • Select "VMDK".
    • Select the Datacenter and Datastore from the dropdown lists.
    • Specify a Log Disk Size.
      • The maximum replication log disk size that can be used with JetStream DR is 16 TiB. This is independent of replication log disk type.
    • Click the Configure button.

Enter VMDK details.

Important: Be sure to use a flash or SSD-backed datastore for the replication log volume.

Note: Additional replication log volumes can be added to the same DRVA by repeating these steps.
