JetStream DR Administrator's Guide (version 5.x)

A recovery site for failover must be provisioned with the vSphere environment and have JSDR software installed. This is required for all modes of failover operation. Follow these steps to configure a recovery site:

1. Allocate compute resources and provision vSphere at the recovery site, as needed.

• The compute resources at the recovery site must be able to run an MSA, a DRVA, and the VMs to be failed over.
• Ensure the network is properly configured per the guidelines described in Pre-Installation.

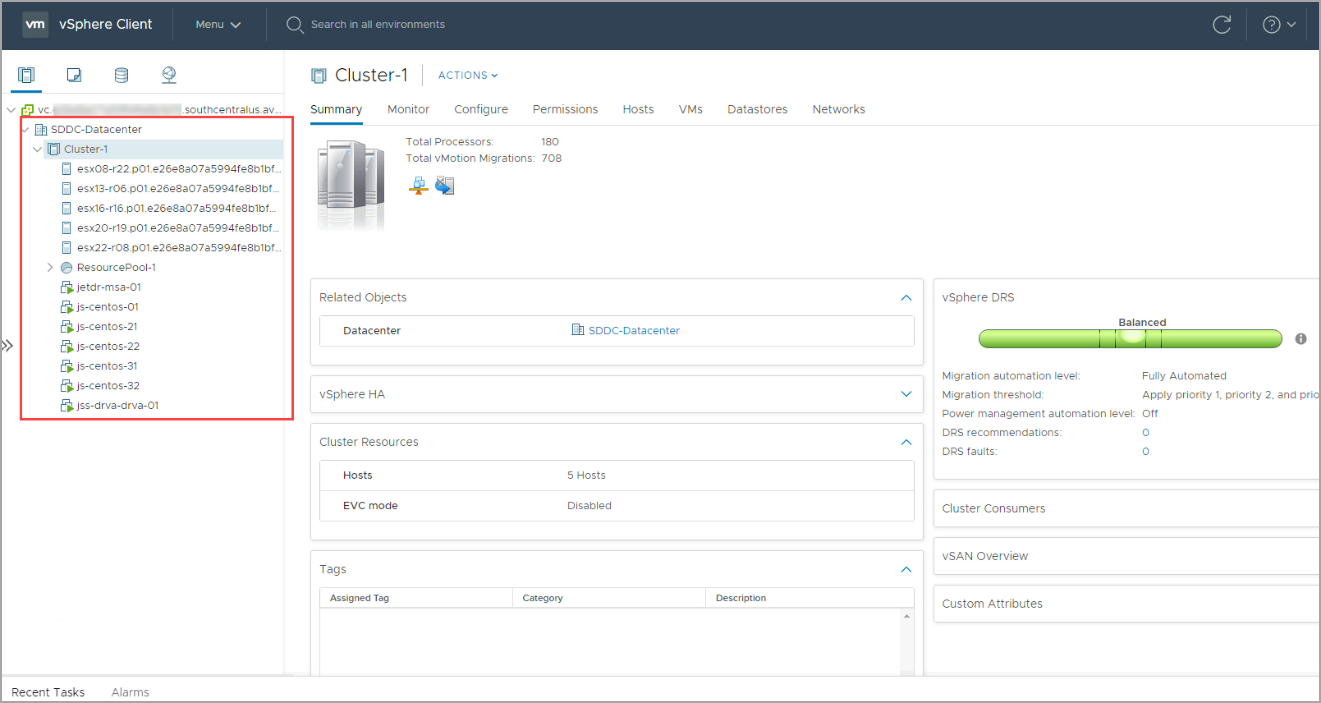

Figure 171: Check vSphere resources at the recovery site.

2. Deploy an MSA at the recovery site.

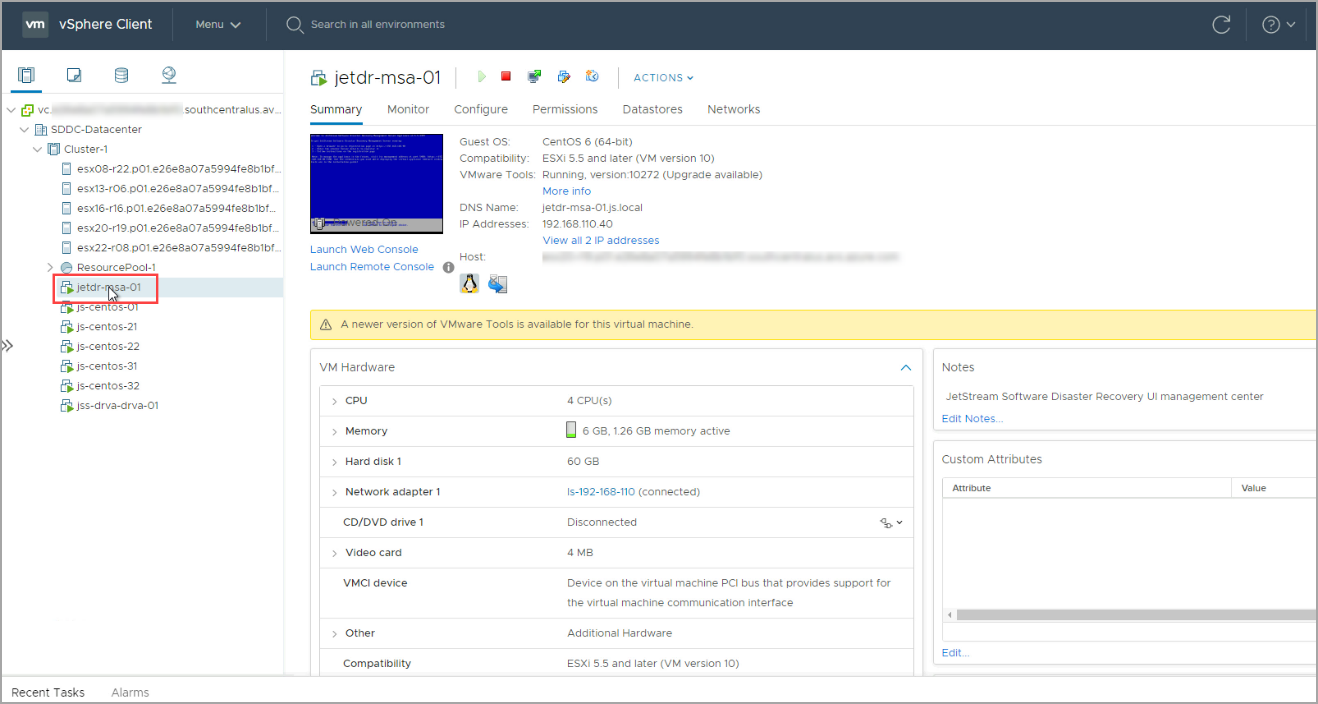

Figure 172: Deploy an MSA.

3. Register the new MSA with vCenter at the recovery site.

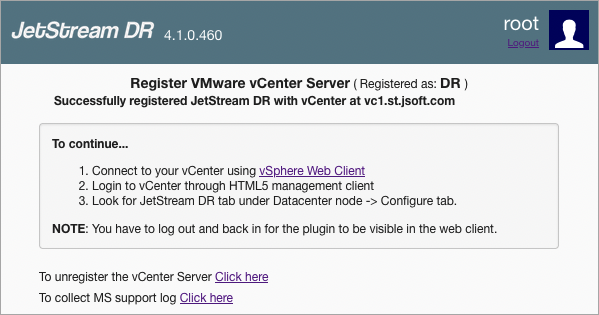

Figure 173: Register the MSA.

4. Configure a cluster and one or more DRVAs at the recovery site.

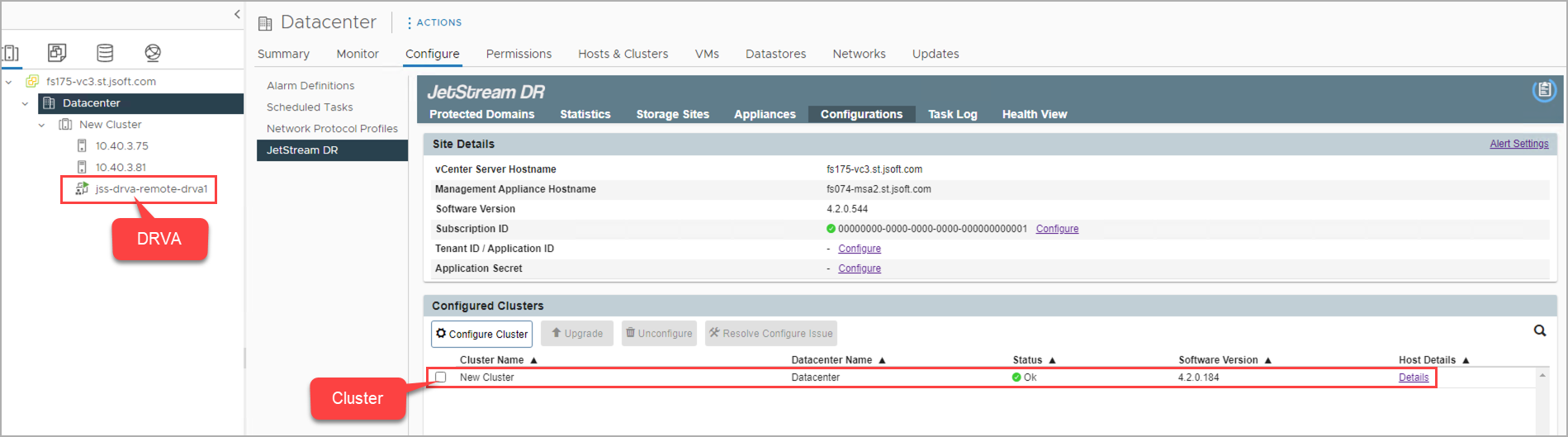

Figure 174: Configure a cluster and deploy a DRVA.

5. At the recovery site, add the storage site using the same credentials that were used for the protected site.

• Make sure it points to the same object store originally used for the protected site.

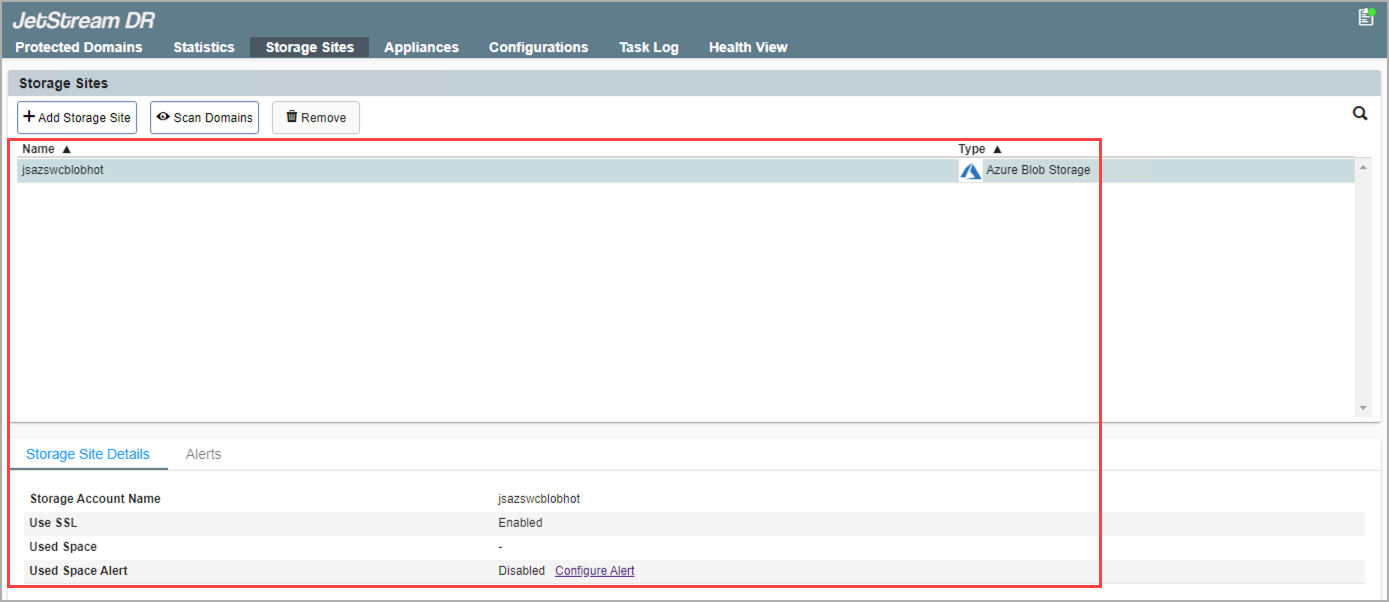

Figure 175: Connect to the storage site.

Also see:

After a recovery site has been prepared, import a Protected Domain for failover.
